4" - 5" - 6" - 8" Motorcycle Bicycle Tire Vulcanizing Machine

1 Set
MOQ
4" - 5" - 6" - 8" Motorcycle Bicycle Tire Vulcanizing Machine
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Type: Vulcanizer
Condition: New
Model Number: LLB/M-800/60
Voltage: 380v50hz
Dimension(L*W*H): 1200*900*2300
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overseas
Certificazione: ISO9000:2008
Power: 7.5Kw
Weight: 2500KG
rubber machine: Rubber Capsule vulcanizing machine
The largest mold edge(T): 25-40
Applicable rim diameter(inch): 4"-5"-6"-8"
Diameter of piston(mm): 200
Working pressure(Mpa): 0.6-0.8
Scheduled type pressure(Mpa): 0.1-0.2
Motor vulcanizing machinepower(Kw): 7.5
Host Dimension(mm): 2400*900*2910
Station dimensions(mm): 1000*600*1200
Informazioni di base
Certificazione: ISO9000:2008
Model Number: LLB/M-800/60
Termini di pagamento e spedizione
Packaging Details: in standard wooden case suitable for long distance ocean transport
Supply Ability: 20 Set/Sets per Month
Descrizione di prodotto



Product Description

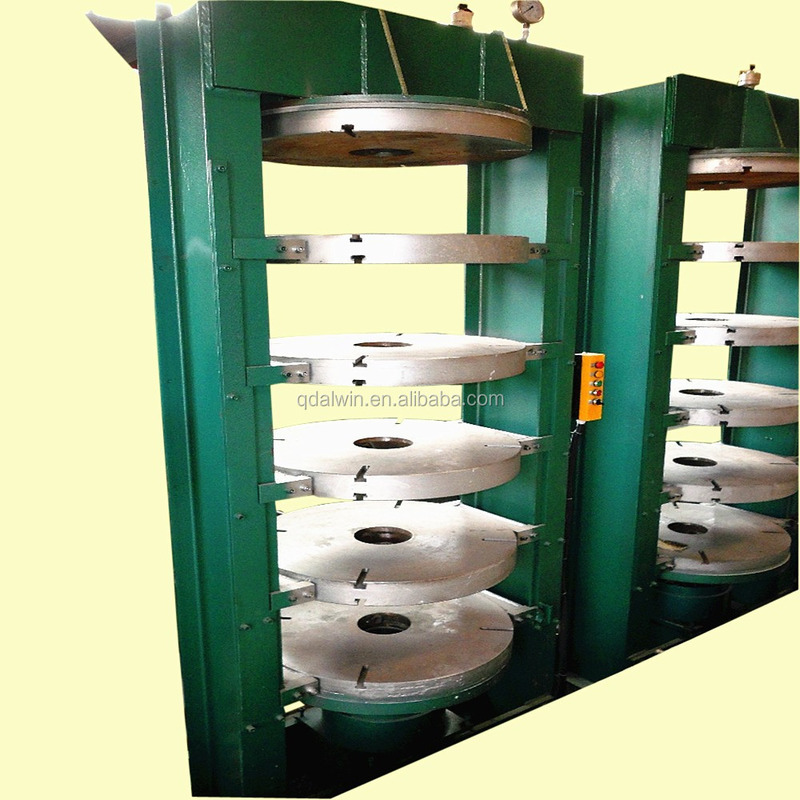

Motorcycle Bicycle Tyre Vulcanizing Machine



Application

The capsule culcanizing machine is used for all kinds of vulcanizing mould rubber and plastic mould products and non-mould products.Being a column structure and downward pressing type, the heating plate opens by the selfweight of the heating plate,plateform and plunger .The rising of the plunger makes the heating plate close while the  hydraulic oil provides the pressure.

We can design and manufacture all kinds of non-standard rubber machinry according to the requirements of the customers.

Main teachnical parameter for rubber capsule vulcanizing machine

TypeUnitLLB-650/40LLB/M-800/60LLB-800/100
The largest mold edgeT25-406080-90
Hot plate diametermm500-650800800-840
Upper and lower hot plate spacingmm300-600500-600600-650
Application rim diameterinch4''5''6''8''8''16''16''18''
Quantity abrasivesdeputy221
Diameter of pistonmm200200290
Diameter of center polemm25-3535-4540
Stroke of center polemm200200300
Working pressureMpa0.6-0.80.6-0.80.6-0.8
Internal pressure of the airMpa1.81.81.8
Pressure steamMpa0.8-1.50.8-1.50.8-1.5
Scheduled type pressureMpa0.1-0.20.1-0.20.1-0.2
Motor powerKw7.57.511
Host dimension (L*W*H)mm1200*900*23002400*900*2910
Station dimensionmm1000*600*12001000*600*1200
Host weightkg250028002800







Factory view



Research and Develop



We have a strong r&d team, it consists of five r&d engineers and many senior technicians, they can design and manufacture all kinds of non-standard rubber machinery according to the requirements of the customers.













productive process





making process



Our Services

Our service

1.Packing the machine reasonable to ensure sopund goods.

2.We offer our technician oversea manufacturing machines of related equipment installation and training service.

3.We can also provide our sales as translator to your site help the installation and training.

4.Provide desiagn plant area if you first enter the machine industry.

5.Other service which we can offer.

6. If the customer purchase a complete production line of outside tires or inner tubes, our company can dispatch an engineer to go abroad to help the customer install and debug machines.







FAQ

1,Are you manufacturer?

Yes,we are approved rubber products manufacturer in China.

2,Can you design new product for us?

Yes,we have a professional development team that make new products according to your requirements.

3,Can you supply sample?

Yes,we can supply you free small samples,but air cost will be paid by customers.

4,What’s your payment term?

Common is 30% deposit by T/T,the balance paid against shipping documents.

Or L/C at sight.

5,Are you near to Qingdao airport?

Yes,only within 1.5hours.

And within 1 hour to Qingdao sea port.

50 minutes to Qingdao Railway Station.

6,Do you have any certificate of your products?

Yes, CE, BV, SGS, REACH.

9,Do you have any certificate of your company?

Yes, ISO 9001:2000.

10,Did your products apply the patent?

Yes,we have waste tyre recycling machine & rubber tile making machine protector patent.



Welcome new and old customers to visit and inquiry,  We will be patient answer customer all of the questions.
