Factory Jewelry Mold Rubber Vulcanizer , Spin Molding Silicone Rubber Vulcanizers

1.0 Sets
MOQ
$3,000.00(1 - 4 Sets) $2,800.00(>=5 Sets)
prezzo
Factory Jewelry Mold Rubber Vulcanizer , Spin Molding Silicone Rubber Vulcanizers
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Type: Vulcanizer
Condition: New
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2019
Warranty of core components: 1 Year
Core Components: Pressure vessel
Voltage: 220V
Dimension(L*W*H): 610*470*1270mm
Warranty: 1 Year
Key Selling Points: Easy to Operate
Power (kW): 4 kW
Weight (KG): 300 KG
Applicable Industries: Manufacturing Plant
Showroom Location: None
Maximum diameter of mould: 12-14-16-18inch,can be customized
Thickness of mould: 0-150mm
Frequency: 50/60hz
Maximum extrusion pressure: 32T/50T
After-sales Service Provided: Video technical support
After Warranty Service: Video technical support
Local Service Location: None
Informazioni di base
Termini di pagamento e spedizione
Packaging Details: Packed by Wooden case.
Descrizione di prodotto
Product Description

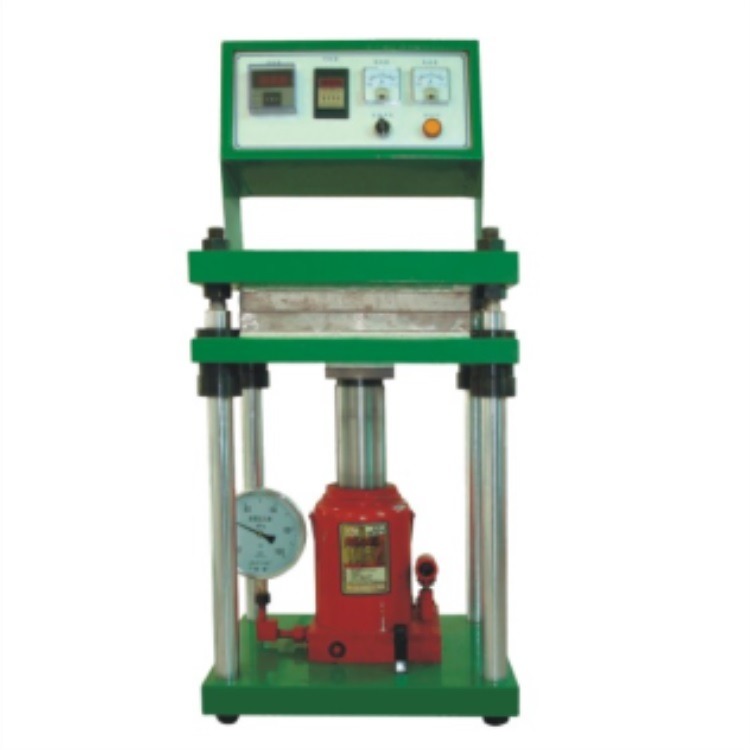

YCY-900 Jewelry rubber mold vulcanizer,spin casting silicone rubber vulcanizers
Feature:
Excellent parallelism of upper mould plate and lower mould plate, independent temperature control, adopting imported stainless steel heating plate, timing of imported digital display timer, digital display constant temperature gauge with constant temperature, the control box which can be separated with machine body, and convenient using.

Equipment appliance:
It is applicable for sulfurization molding of runner mould of kinds of ornaments and craftworks.

Specification
products name
press moulding machine,rubber/silicon vulcanizer machine
Model
YCY-900
Maximum diameter of mould
12-14-16-18inch(can be customized)
Maximum extrusion pressure
32T/50T
Thickness of mould
0-150mm
Voltage
220V
Frequency
50/60HZ
maximum power
4KW
Centrifugal casting production process: 1. Mold making process (known as pressing mold) : take many pieces of plate directly pressed into A to B film forming, rubber A in the middle, divided into the upper and lower mold, rubbe A high temperature resistance, rubbe B used to pad lining mold height; 2. Vulcanization: preheat the die press first, put the A and B film into the mold frame, and then put the die press into the preheat and pressure (force should be appropriate), and heat up to 140℃-160℃ for one hour or one and A half hours (according to the size of the mold) to make it finalized. 3. Open the mold (take the mold) : when the mold is cool properly, take out the finalized A and B film from the mold frame, open the upper and lower mold, open the water outlet with the blade, crane and other tools, and make A good exhaust hole; 4. Melt: put the alloy material to be melted into the furnace to melt it to the required temperature; 5. Centrifugal casting: put the film into the centrifugal casting machine, and then pour into the molten material, use the centrifugal force to throw the melted material into the mold, cold, forming, take out the mold from the casting machine, break open the upper and lower mold, take out the product, waste waste furnace melting material again.
Recommend Products
Jewelry centrifugal casting machine Crafts jewelry series: (automatic three die head centrifuge, semi automatic three die head centrifuge, ordinary centrifugal casting machine, full automatic molding machine molding machine: ordinary furnace) (Taiwan version of intelligent CNC electric melting furnace, electric melting furnace, general electric furnace drying equipment: oven (etc.) automatic constant temperature furnace, centrifugal fan board drying machine, tunnel type automatic constant temperature furnace) bureau of spraying equipment: (injection cabinet, water type, mixed type fuel injection cabinet cabinet) mold cooling system: speeding wind trough (speeding up cooling of the mold to prolong the service life of the die) full automatic production line: the whole production process is concentrated in not more than 14 square meters area. Our company produces series of processing machinery and equipment is mainly used for processing the fusible alloy, magnesium zinc alloy, pewter, low temperature zinc alloy jewelry, jewelry, crafts. Shoe buckles, ornaments, handicrafts, such as hair clip, alloy necklace, earrings, pendants, rings, photo frame, belt buckle, bag buckle all kinds of accessories, clothing accessories, handicrafts, twelve animals, fishing nets and fishing tackle, sinker weight.
Detail Images
Packing & Delivery
Packing: packed in wooden case.

Shipping: By Sea. about 20-25 days for delivery time.

Payment: Bank transfer, Pay 30% deposit, then pay the balance before we ship it to you.
Company Profile
FAQ
1. Why choose us? 1.1- We have over 20 years experience on machinery making . 1.2- Our factory is located in Dongguan more than 150 workers in our factory . 1.3- We sale good quality machines around the world with good service and got high reputation from our customer. Welcome to visitour factory! 2.Can you customize machine ? As a professional machinery manufacturer for more than 20 years,we have skilled OEM technique. 3. What about after sale service? Engineer will go to buyer's factory to install, test machines, and train buyer's staff how to operate, maintain machines. When machine has problem, We will solve basic questions by telephone, email, whatsapp, wechat and video call. Customers showing us the picture or video of the problem. If the problem can be easily solved , we will send you solution by video or pictures. If the problem out of your control, we will arrange engineer to your factory. 4.How about warranty and spare parts? We provide 1 year warranty and enough spare parts for the machine,and most of the parts can be found in local market also,also you can buy from us if all the parts that over than 1 year warranty. 5. How can you control the quality and delivery? All our machines will be tested before packaging. Teaching video and packing pictures will be sent to you for checking,we promise that our wooden packaging is strong enough and safety for long delivery . 6. What about the delivery time? In stock machine:1-7days Usually 7-60 Working days(depened on products).
